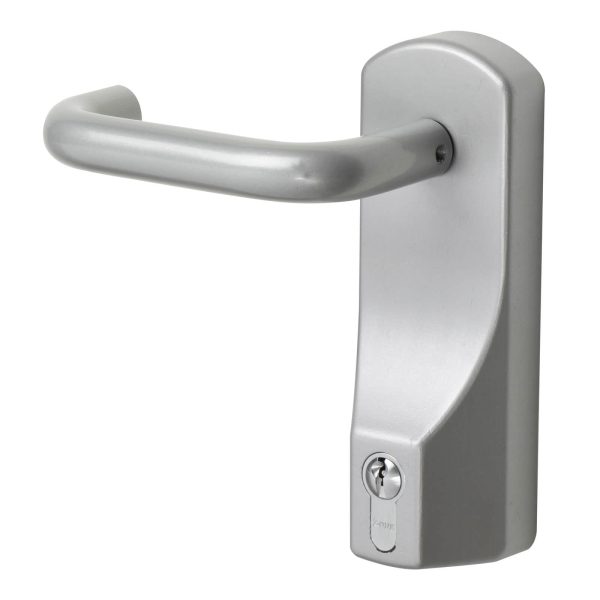

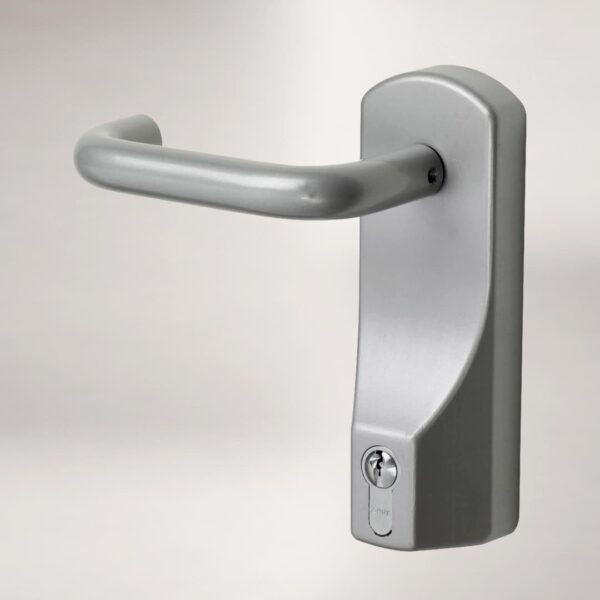

Exidor 322 Outside Access Device


  • Non-handed (Suitable for left and right handed doors)
  • Supplied with a 45mm Euro profile and 3 keys
  • Surface mounted on the outside of the door with concealed fixings
  • Lever has a special shear screw designed to break under excessive force
  • Suitable for doors up to 55mm thick
SKU: 322 OAD Category:

Fitted to a compatible Exidor panic bar, the Exidor 322 OAD (outside access device) allows you to access your fire escape door externally.

Lever operated, it is supplied with a 45mm Euro profile and 3 keys.

When locked, the lever is fixed in the horizontal position. When unlocked, the lever, spindle and mechanism engage allowing the latches to be withdrawn from the outside. The lever remains engaged until the mechanism is re-locked. The shear screw inside is designed to break should excessive force be applied to prevent unauthorised entry.

Compatible with the Exidor 294a, 296 and 285a panic bars.

Weight 4.5 kg
