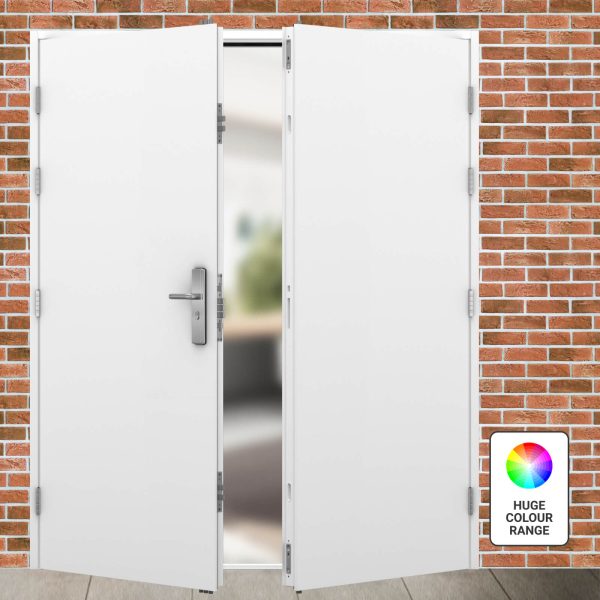

Versatile PA Doors

Our double personal access doors offer a great deal of versatility and can be used for a variety of applications. They are also very easy to fit, using our knock-down frame assembly.

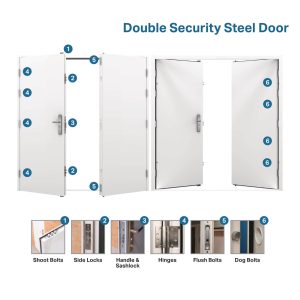

Featuring a 10 point locking system plus 4 dog bolts and latch, a total of 15 points secure the active door leaf in the frame. The passive door leaf also features 4 dog bolts and a concealed flush bolt to the top and bottom.

Being manufactured from galvanised steel with a fully welded construction, as well as a heavy duty polyester powder coat, ensures that our doors are built to last. They are also fitted with weather and draught proof seals making our steel doors ideal for both internal and external use.

Door Type	Personnel Door
Size (mm)	710×20502 (1490×2095 Frame), 860×20502 (1790×2095 Frame), 1010×2050*2 (2090×2095 Frame)
Finish	White powder coat from stock
Door Frame Material	1.8mm Galvanised Steel
Door Frame Depth	90mm
Door Leaf Material	Double skinned 1.0mm galvanised steel
Door Leaf Depth	50mm
Door Leaf Core	Mineral wool insulation
Internal Strengthening	2 x horizontal & 1 x vertical reinforced bars per door leaf
U Value	2.20
Acoustic Value	35dB
Hinges	8 Stainless steel ball bearing hinges
Handles	Hooply handles (5586)
Cylinder	UAP Tradelock Euro Cylinder, security upgrade available
Locks or Door Furniture	Genuine HOOPLY® multi-point locking system
Seal	Nylon self adhesive V-seal
Dog Bolts	4 Dog bolts on each door leaf (8 in total)

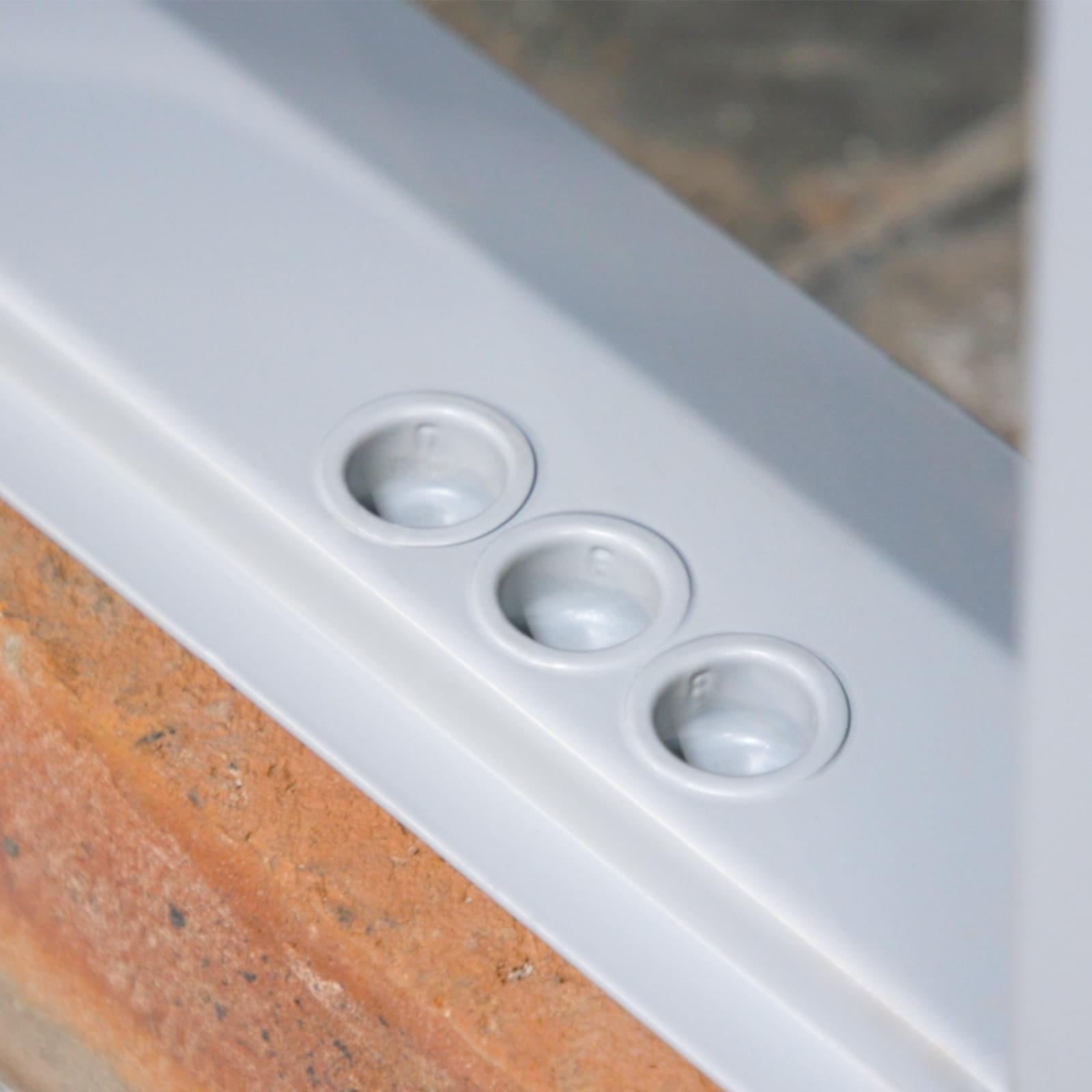

Threshold	DDA (Disability Discrimination Act) compliant threshold
Jemmy Bar Lip	At door jam, hinge side & top + astragal
Construction	Fully welded construction
Security Type	Standard
CE Certification	Yes
Security Certification	None
Fire Rating Certification	None
Stock Product	Yes
Made to Measure Product	No
External or Internal Use	Suitable for external and internal use
Example Door Purposes	Garage door, rear shop door, loading bay door, warehouse double door, office security door

Downloads

Brochure
Download Brochure

Installation Instructions
Download installation instructions

CAD Drawings
Double Personal Access Door CAD drawing – PDF
