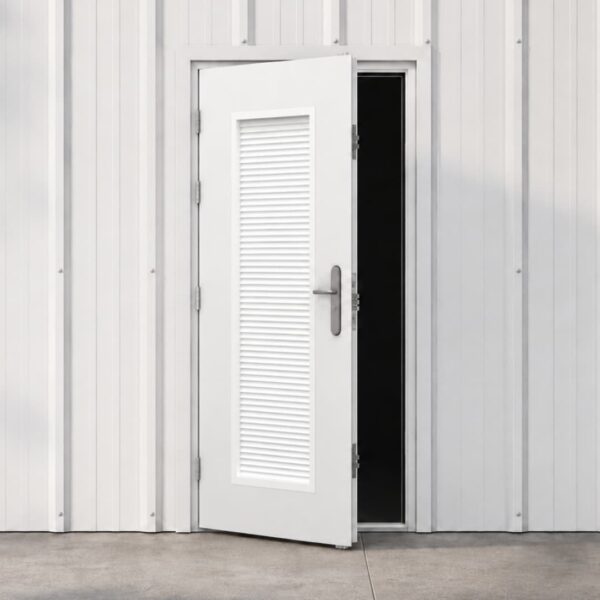

Steel Air Vent Door & Frame

From: $1,485.00

Our Steel Air Vent Doors are perfect for applications that require a combination of airflow, ventilation and security.

Offering up to 50% air flow, they are suitable for boiler rooms, plant rooms and server rooms.

These doors are fitted with our industry-leading 19 point locking system and are some of the strongest air vent doors available in Australia.

  • *Size (mm)
    *Door Handing (External View)
    *Air Relief Grille
    Reset options

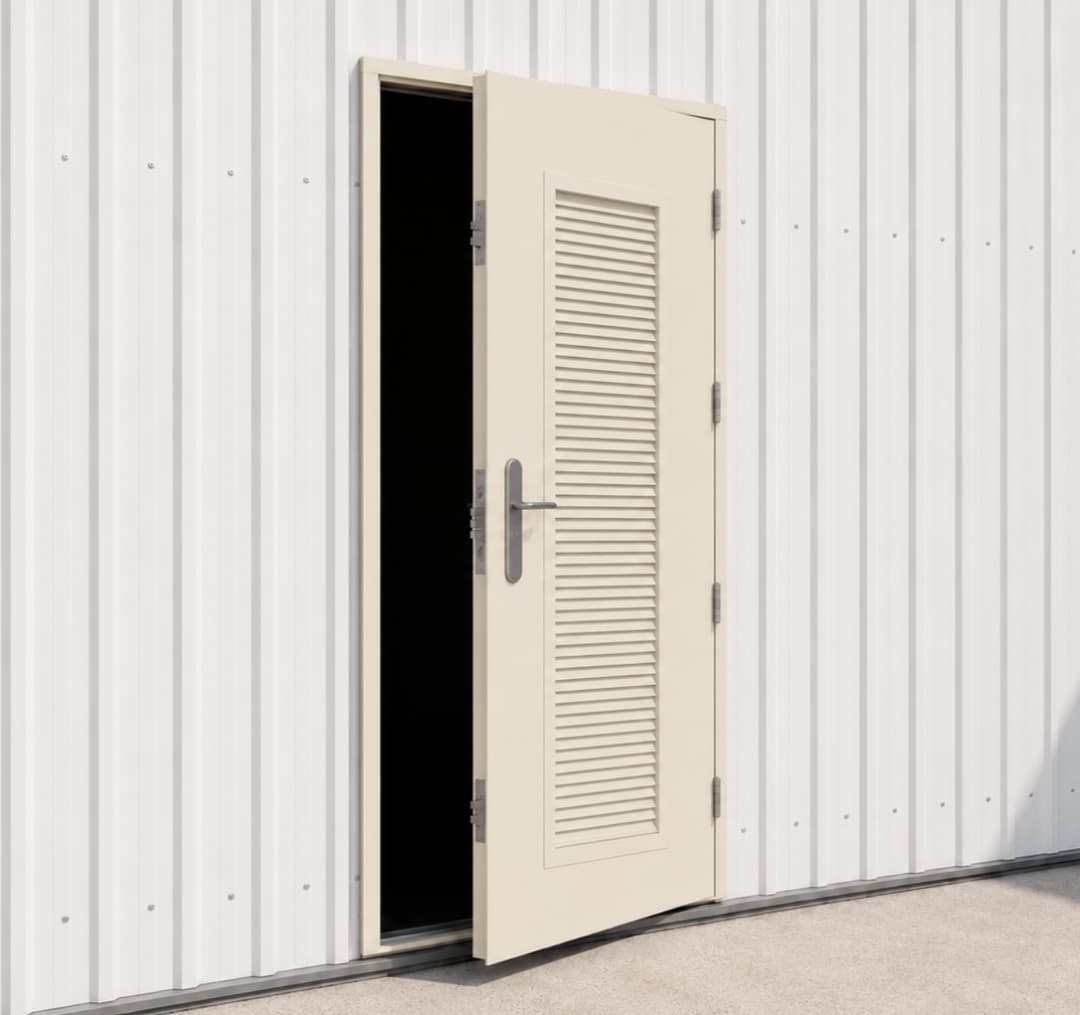

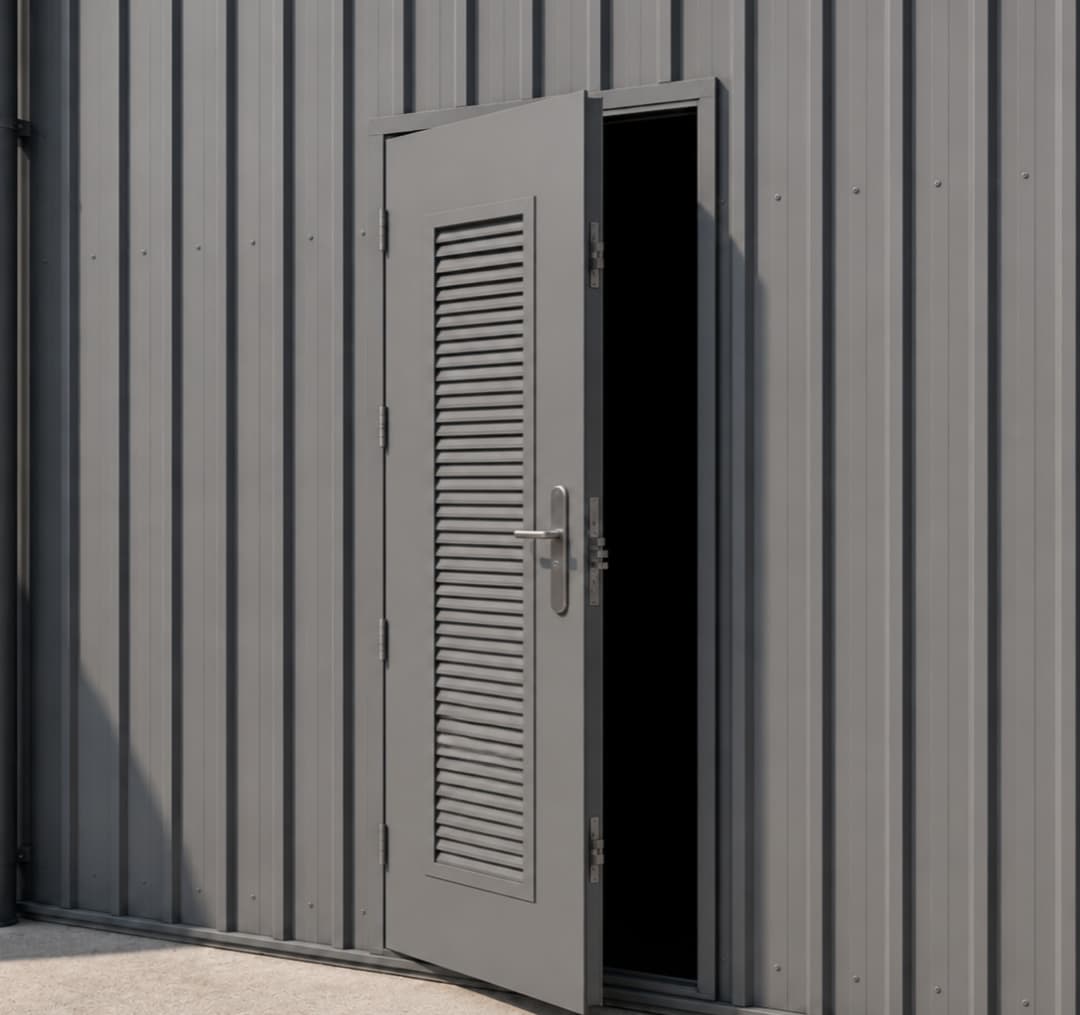

    Colour
    More info icon More info
    Custom Colour
    Expanding Side Frames


    More info icon More info

    Overhead Panel
    More info icon More info
    Handle Options
    More info icon More info
    Door Closer
    More info icon More info
    Keyed Alike

    Viewing Panel


    More info icon More info

    Rain Deflector
    More info icon More info
- +
Perth Depot
In stock
Brisbane Depot
In stock
SKU: LOUVRE-DOOR Category:
Guaranteed Safe Checkout

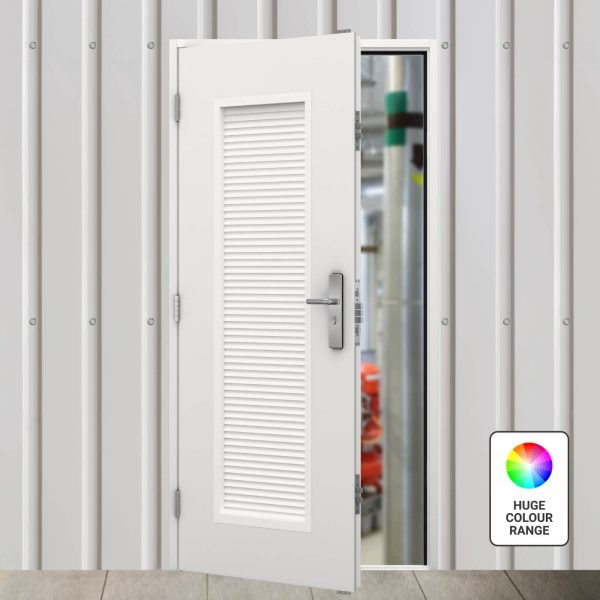

A cost effective option for anyone requiring a vented door. Fitted with a choice of louvre panel, these doors are perfect for buildings that require extra air flow such as bin stores, plant rooms and much more.

Manufactured from galvanised steel with a fully welded construction, these doors include a genuine HOOPLY™ multi point locking mechanism, 3 secure ball bearing hinges and 4 security dog bolts, your property is a lot safer with a Latham’s steel door.

Finished in a heavy duty polyester powder coat, these doors are suitable for use in any environment.

Door Type

Personnel Door

Size (mm)

820×2050 (890×2095 Frame), 920×2050 (990×2095 Frame), 1120×2050 (1190×2095 Frame)

Finish

White powder coat from stock

Air Relief Grille

1 x 479mm x 479mm, 2 x 479mm x 479mm, 479mm x 1546mm

Door Frame Material

1.4mm Galvanised Steel

Door Frame Depth

90mm

Door Leaf Material

Double skinned 0.8mm galvanised steel

Door Leaf Depth

45mm

Door Leaf Core

Honeycomb core

Internal Strengthening

None

U Value

2.88

Acoustic Value

30dB

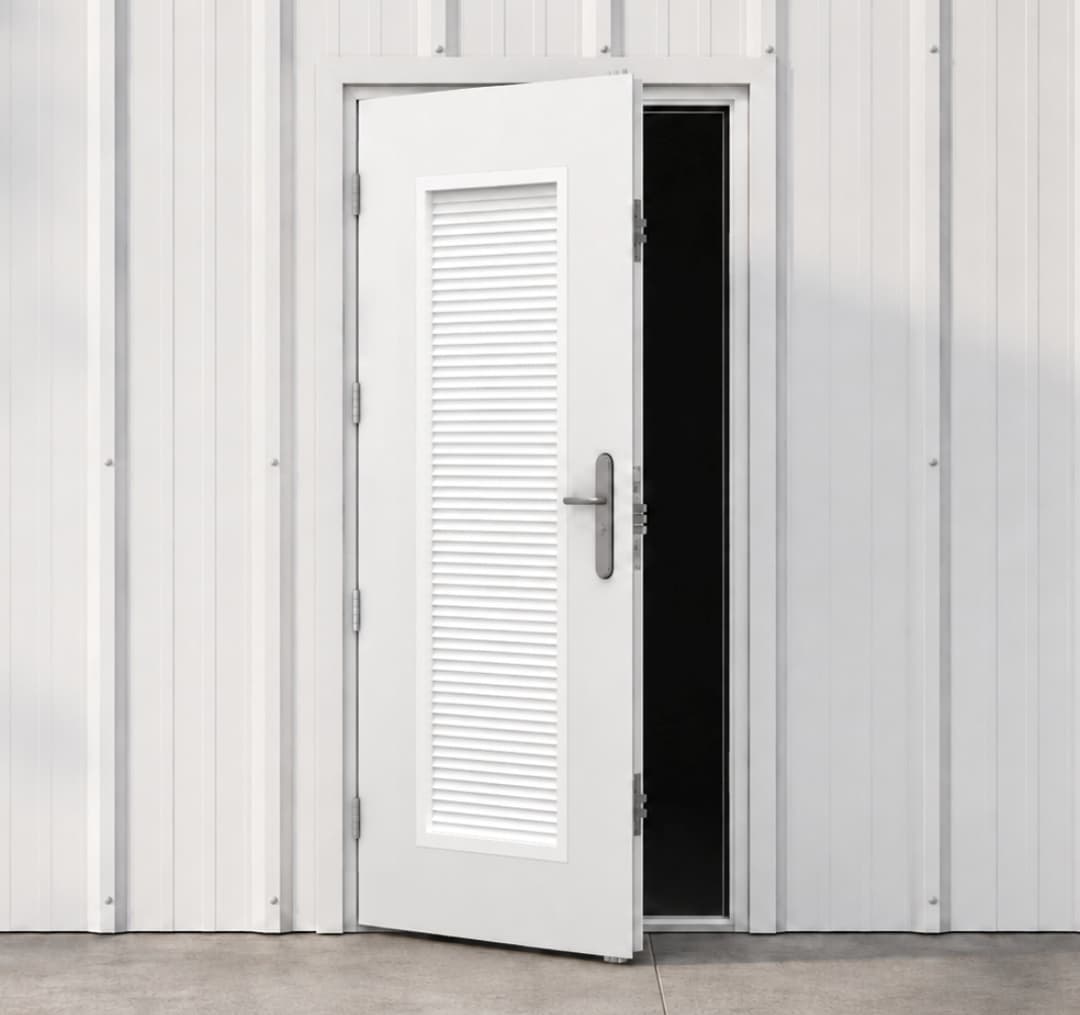

Hinges

3 Stainless steel ball bearing hinges

Handles

Hooply handles (5586)

Cylinder

UAP Tradelock Euro Cylinder, security upgrade available

Locks or Door Furniture

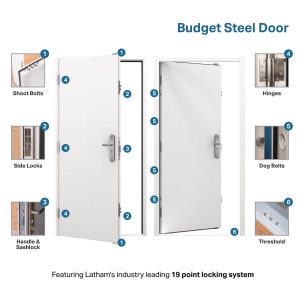

Latham's trademark 19 point locking system

Seal

Nylon self adhesive V-seal

Dog Bolts

4 Dog bolts

Threshold

DDA (Disability Discrimination Act) compliant threshold

Jemmy Bar Lip

At door jam, hinge side & top

Construction

Fully welded construction

Security Type

Standard

CE Certification

Yes

Security Certification

None

Fire Rating Certification

None

Cyclonic Region D Certified

No

Stock Product

Yes

Made to Measure Product

No

External or Internal Use

Suitable for external and internal use

Example Door Purposes

budget security door, shed door, garage side door, internal office security door, stationary cupboard door

Downloads

Installation Instructions

Download installation instructions

Region D Certification (AS/NZS 1170.2:2011)

View Certification Here

Videos

Reviews

Posted on Google Google
Dylan Quirk profile picture
Dylan Quirk
October 31, 2026
Google star 1Google star 2Google star 3Google star 4Google star 5Trustindex verifies that the original source of the review is Google.
Quality products, Good after sales support. Bought a container door from this company and a staff member broke the key off. inside the door. The key is within their product ecosystem so it's not he type that can be replicated from a locksmith. They sent a replacement free of charge.
Posted on Google Google
Rory Herbert profile picture
Rory Herbert
October 6, 2026
Google star 1Google star 2Google star 3Google star 4Google star 5Trustindex verifies that the original source of the review is Google.
Great doors and windows. Always helpful and good service
Posted on Google Google
Kathy Lyons profile picture
Kathy Lyons
September 30, 2026
Google star 1Google star 2Google star 3Google star 4Google star 5Trustindex verifies that the original source of the review is Google.
Always great service and prompt delivery
Posted on Google Google
Ryan Jamieson profile picture
Ryan Jamieson
September 30, 2026
Google star 1Google star 2Google star 3Google star 4Google star 5Trustindex verifies that the original source of the review is Google.
Very professional service from initial quote to security door installation. The Latham team were fantastic, would highly recommend 👍🏻
Posted on Google Google
Elivio Lo Biundo profile picture
Elivio Lo Biundo
September 30, 2026
Google star 1Google star 2Google star 3Google star 4Google star 5Trustindex verifies that the original source of the review is Google.
Very happy, awesome service

Please use the table below to see the delivery lead times for your area.

Area Stock Door Lead Time Modified Door Lead Time
Perth Metro 7 days +2-3 weeks
WA Country 1-2 Weeks
Sydney Metro 1-2 Weeks
NSW/ACT Country 2-3 Weeks
Brisbane Metro 1-2 Weeks
QLD Country 2-3 Weeks
Adelaide Metro 1-2 Weeks
SA Country 2-3 Weeks
Darwin Metro 1-2 Weeks
NT Country 2-3 Weeks
Hobart Metro 2-3 Weeks
TAS Country 2-3 Weeks
Melbourne Metro 1-2 Weeks
VIC Country 2-3 Weeks
