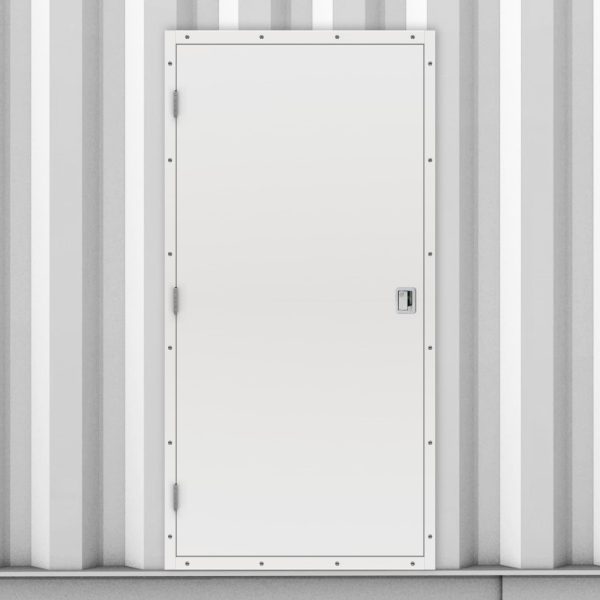

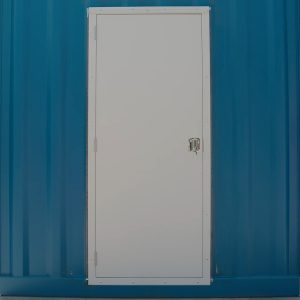

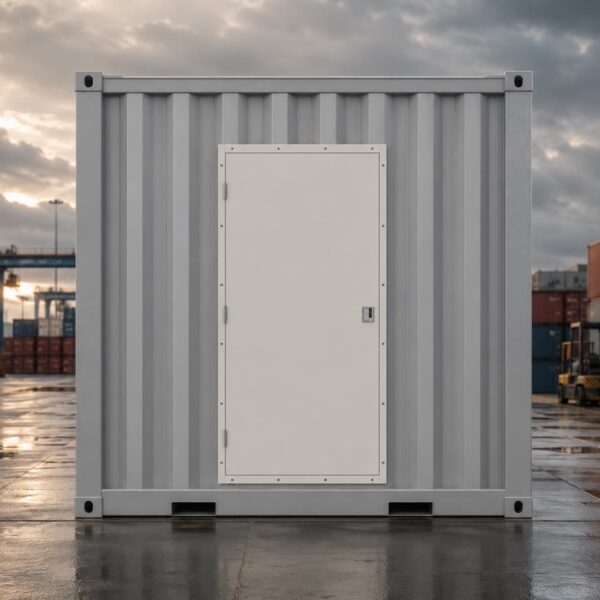

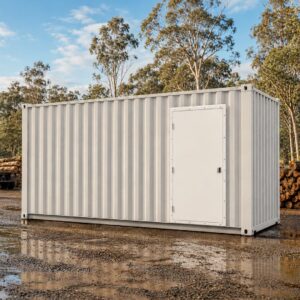

Standard Duty Side Door & Frame for Shipping Container

From: $880.00

Simple, easy-fit steel container side doors perfect for shipping container modifications. Made from galvanised steel, they are pre-hung in the frame ready to face fix install in an RHS frame.

Supplied pre-fitted with a flush lock, and available in a Surfmist White colour from stock – Powder coat Colorbond colours available.

Tested and certified to Region D rating – AS/NZS 1170.2:2011.
Icon showing our door is Cyclonic Region D certified

info icon View door size more info | View door orientation more info

  • View more info
    View more info
    View more info
    Reset options
SKU: SD-CON-DOOR Category:

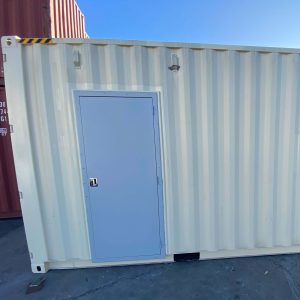

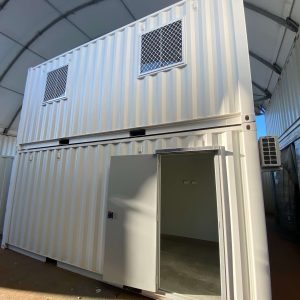

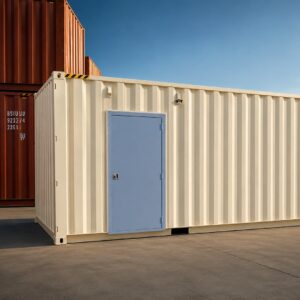

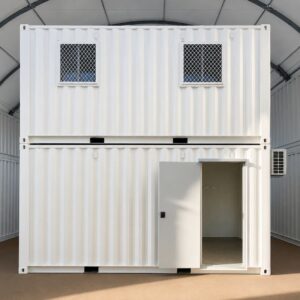

Our standard-duty container side doors were designed specifically for container conversions and modifications and are also perfectly suited for a range of purposes such as:

Modular buildings
Steel frame buildings
Dongas

Matching powder-coated steel wall capping is provided.

Pre-hung in their frames with dual fixing options, you can either face fix externally or use adjustable wind out lugs to fix through the frame rebate.

Manufactured with 0.8mm galvanised steel door skins and 1.4mm galvanised frames, the frames are fully welded. Four stainless steel ball bearing hinges hold the leaf in the frame.

Finished with a heavy-duty Surfmist white powder coat as standard, with the option to change the colour to any Colorbond colour.

The door leaf features internal steel reinforcements and 4 dog bolts (fixed locking points) at the hinge side for improved security.

Our double rebated frame and door profile creates 2 meeting points for superior sealing. This along with mineral wool insulation, achieves higher weatherproof and acoustic properties.

Supplied as standard with a flush lock handle, Dormakaba lever handle, knob or push bar.

FLUSH LOCK HANDLES AND PANIC BARS ARE PRE-INSTALLED. HARDWARE IS SENT LOOSE WHEN ORDERED WITH LEVER HANDLES OR KNOB SET TO AVOID DAMAGE IN TRANSIT.

Door Type

Shipping Container Door

Size (mm)

820×2050 (890×2095 Frame), 920×2050 (990×2095 Frame), 1020×2050 (1090×2095 Frame)

Door Orientation

Left Hinged – Opening Outwards, Right Hinged – Opening Outwards

Finish

Heavy Duty Polyester COLORBOND® Powder coat

Colour

Surfmist

Door Frame Material

1.4mm Galvanised Steel

Door Frame Depth

90mm

Door Leaf Material

Double skinned 0.8mm galvanised steel

Door Leaf Depth

45mm

Door Leaf Core

Mineral wool insulation

Hinges

4 Stainless steel ball bearing hinges

Seal

Weather / draught proof seals

Construction

Fully welded construction

Security Type

Standard

Stock Product

Yes

Example Door Purposes

Shipping container doors, container conversions, site offices, modular buildings

Downloads

Installation Instructions

Download Installation Instructions

Region D Certification (AS/NZS 1170.2:2011)

View Certification Here

Videos

Reviews

Please use the table below to see the delivery lead times for your area.

Area Stock Door Lead Time Modified Door Lead Time
Perth Metro 7 days +2-3 weeks
WA Country 1-2 Weeks
Sydney Metro 1-2 Weeks
NSW/ACT Country 2-3 Weeks
Brisbane Metro 1-2 Weeks
QLD Country 2-3 Weeks
Adelaide Metro 1-2 Weeks
SA Country 2-3 Weeks
Darwin Metro 1-2 Weeks
NT Country 2-3 Weeks
Hobart Metro 2-3 Weeks
TAS Country 2-3 Weeks
Melbourne Metro 1-2 Weeks
VIC Country 2-3 Weeks
